Routers
5G Hybrid Enterprise Branch Connectivity
WAN Interface
1x 10/100/1000M Ethernet
1x USB Interface
1x SFP
1x 5G Embedded Cellular Modem with Redundant SIM Slots
1x USB Interface
1x SFP
1x 5G Embedded Cellular Modem with Redundant SIM Slots
Recommended Users
50–500
LAN Interface
5x 10/100/1000M Ethernet
1x SFP
1x SFP
Cellular Antenna Connector
4x SMA Cellular Antenna Connectors
4x RP‑SMA Wi‑Fi Antenna Connectors
4x RP‑SMA Wi‑Fi Antenna Connectors
Wi‑Fi Interface
Wi‑Fi 5 Access Point
2×2:2 Simultaneous Dual‑Band
2×2:2 Simultaneous Dual‑Band
Power Input
12 V DC Connector
Router Throughput
1 Gbps
Power Consumption
17 W (nominal), 40 W (max.)
PepVPN Throughput (No Encryption)
600 Mbps
Dimensions
9.9 × 7.1 × 2.0 inches
252 × 180 × 50 mm
252 × 180 × 50 mm
PepVPN Throughput (256‑bit AES)
500 Mbps
Weight
1.65 kg
3.6 pounds
3.6 pounds
Cellular Data Rate* (Downlink/Uplink)
5G: 3.4 Gbps / 900 Mbps
LTE CAT‑20: 1.6 Gbps / 200 Mbps
LTE CAT‑20: 1.6 Gbps / 200 Mbps
Operating Temperature
32°–104 °F
0°–40 °C
0°–40 °C
SpeedFusion Features
Hot Failover, Smoothing, Bandwidth Bonding
Humidity
10%–85% (non‑condensing)
Number of PepVPN SpeedFusion Peers
2/30^
Certifications
FCC, CE, RoHS
Package Content

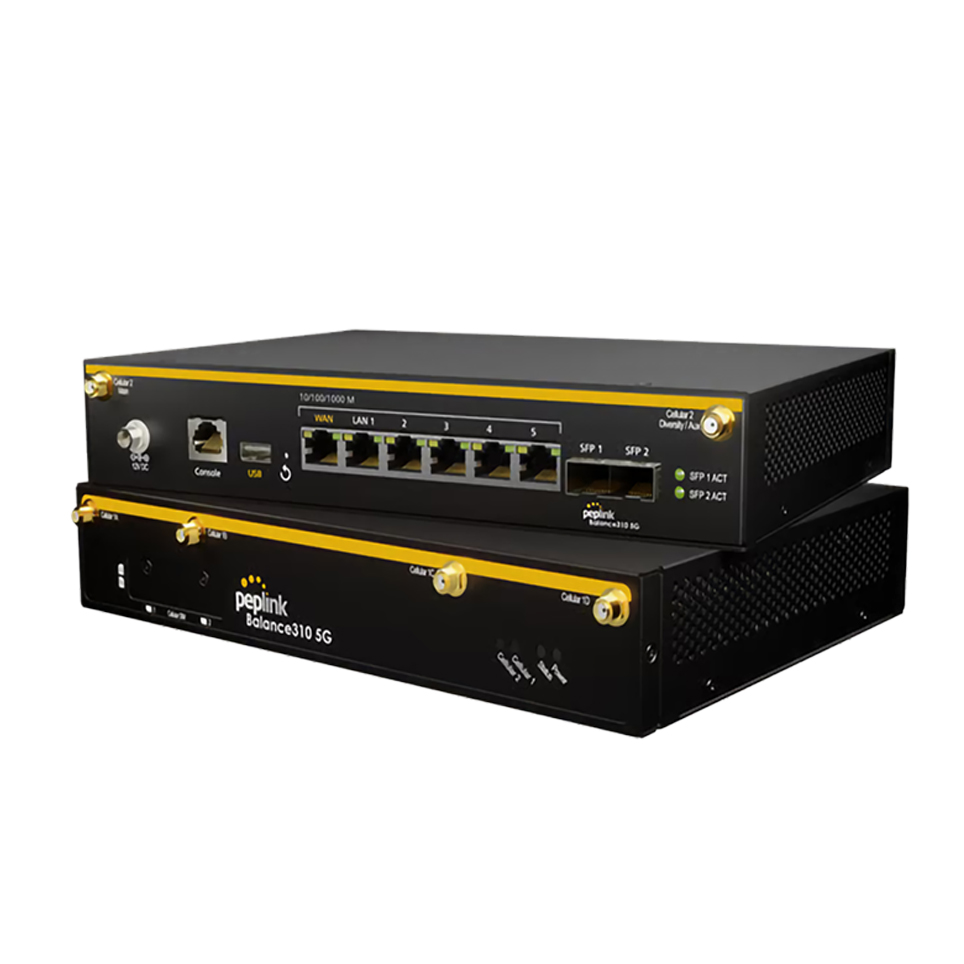

Balance 310 Fiber 5G
1x 12V5A PSU
1x Power Cord (ACW‑614)
4x Wi‑Fi Dual Band Antennas (ACW‑341)
4x LTE/5G Antennas (ACW‑235)
Rubber Foot Pad set
1x 12V5A PSU
1x Power Cord (ACW‑614)
4x Wi‑Fi Dual Band Antennas (ACW‑341)
4x LTE/5G Antennas (ACW‑235)
Rubber Foot Pad set
SIM Options
Nano‑SIM (4FF)
Peplink eSIM
BYO eSIM (2 profiles) #
Remote SIM from SIM Injector
FusionSIM
Peplink eSIM
BYO eSIM (2 profiles) #
Remote SIM from SIM Injector
FusionSIM
